While standard consumer antennas use a cheap linear whip, professional video systems demand a 4 leaf clover mushroom antenna 5.8GHz. Known in RF engineering as a "Skew Planar Wheel," here is the physical breakdown of why this exact four-lobe design dominates the 5.8GHz spectrum.
1. The Geometry of the 4-Leaf Clover
The "clover" consists of four precision-cut copper wire lobes, soldered at exact overlapping angles around the center feed. This is not for aesthetics. This complex physical structure mathematically forces the RF energy into a corkscrew shape, generating true Circular Polarization (CP).
Unlike a 3-leaf design (which is sometimes restricted to the transmitter), the 4-leaf architecture produces an incredibly uniform, omnidirectional radiation pattern. This lack of "dead zones" makes it the ultimate standard for both VTX and VRX integration, keeping the video link alive even when a drone banks at extreme 90-degree angles.
2. Perfecting the Axial Ratio
The quality of a CP antenna is measured by its Axial Ratio. If the copper lobes are bent even slightly out of spec, the radio waves become elliptical rather than perfectly circular.
A true factory-tuned 4-leaf clover delivers an Axial Ratio as close to 1.0 as physically possible. This guarantees strict Right-Hand (RHCP) or Left-Hand (LHCP) polarization. The tighter the axial ratio, the more aggressively the antenna rejects cross-polarized multipath interference (signal bounces from concrete walls or metal structures), delivering a completely static-free video feed to the ground station.

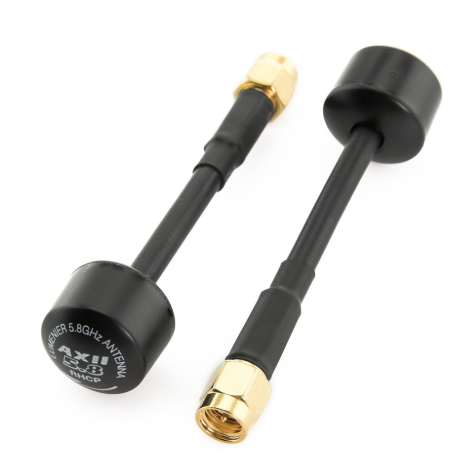

3. The Necessity of the "Mushroom" Radome
Because the 4-leaf geometry relies on micrometer-level precision, it is incredibly fragile. A single drone crash or rough handling in a gear bag will bend a lobe and instantly ruin the Axial Ratio.
The sonic-welded "mushroom" radome acts as a rigid, low-loss RF transparent shield. It mechanically locks the copper clover in its perfectly tuned factory state, surviving brutal impacts without shifting the 5.8GHz resonance or destroying the video feed.
Need Precision 5.8GHz Hardware? We manufacture VNA-calibrated 4 leaf clover mushroom antennas (5.8GHz) for commercial UAV fleets, FPV goggles, and tactical video links. [Contact Our RF Factory for B2B Wholesale Pricing]
